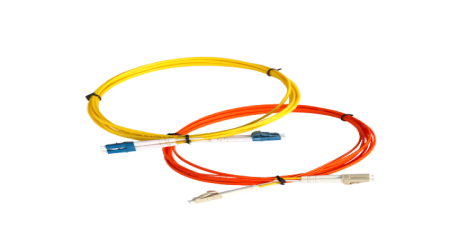

D-Link patch cords
Brand: D-Link
Category: FTTH & Home-based Solutions
Specifications
| Connector Type | SC / ST / FC / LC / MTRJ |
| Optical Fiber | Corning single-mode G652D,G657A,G657B |
| Cable Type | PVC & LSZH on request 0.9mm/2.0mm/3.0mm Simplex & duplex |
| Cable Color, Length | Yellow for simplex & Orange for Multi-mode & Aqua for OM3 1m , 2m & 3m .Other lengths on request |
Optical Specification
| Insertion Loss | |
| Typical | ≤0.2dB, Max. 0.3dB |
| MTRJ | Max. 0.5dB |
| Return Loss | >PC≥45dB, UPC≥50 dB, APC≥60dB |
Mechanical Specification
| Connector Ferrule | Ceramic, (MTRJ: PS- Polyphenylene Sulphide ) |
| Apex Offset | ＜50um |
| Fiber Height | ±100nm |
