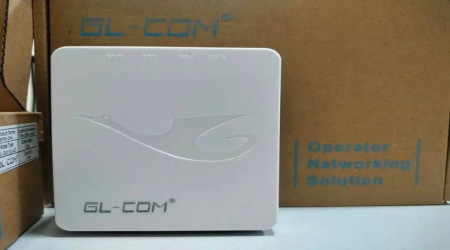

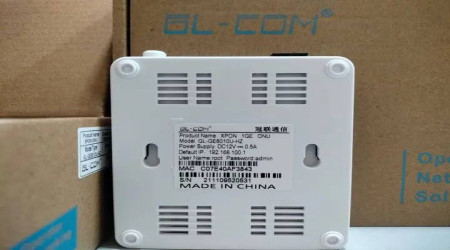

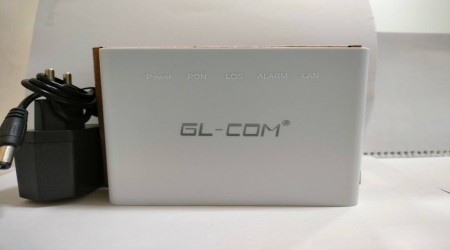

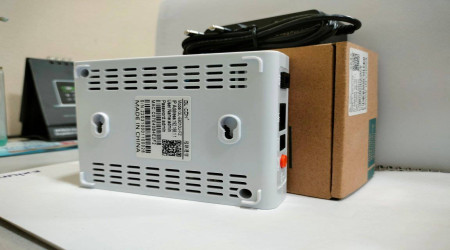

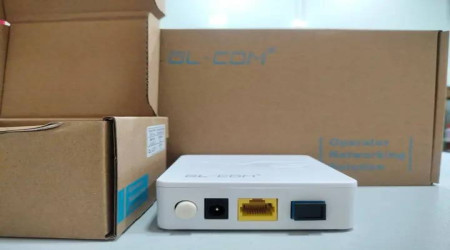

GL-COM GL- E8010U-CT

Brand: GLCOM

Category: FTTH & Home-based Solutions

Full Specification

Downstream Data Rate: 2.488Gbps
Upstream Data Rate: 1.244Gbps
SC/UPC single-mode fiber
PON Port
1 x XPON port, FSAN G.984.2 standard/IEEE802.3ah
28dB Link loss and 20KM distance with 1:128
Receiving sensitivity: ≤-30dBm
Transmitting optical power: 0~+4dBm
Ethernet Port (LAN)
1 x GE Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex
RJ45, Auto-MDI/MDI-X
Transmission Distance: 100 Meters
Power
Power Supply: 12V, 0.5A DC input
Power Consumption: up to 3W
Environment
Operating Temperature: 0～50℃
Storage Temperature: -40～85℃
Operating Humidity: 10～90% (Non-condensing)
Storage Humidity: 10～90% (Non-condensing)
Shell: Plastic casing
Dimension(L x W x H): 110 x100 x 23mm
Weight: 300gm
