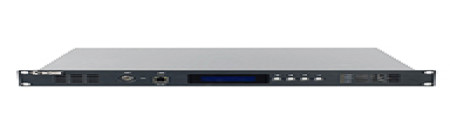

1550nm Erbium Doped Fiber Amplifier
Brand: WSEE
Category: FTTH & Home-based Solutions
Erbium doped fiber amplifier (EDFA) is a CATV professional device used to amplify and transmit 1550 nm optical signals in a cable television transmission system. It can realize Cable TV 1550nm single-wavelength transmission, DWDM multi-wavelength transmission, Optical relay in trunk network and node amplification in optical access network.
- Feature
● Selection of internationally renowned brands of low noise pump lasers, low distortion, wide band, high output optical power.
● Imported high-performance American Corning Erbium-doped fiber, high energy conversion efficiency.
● 32-bit ARM processor, light control output accuracy of ± 0.1dBm.
● Optical power receiving range -10dBm ~ +10dBm, optical power output 13~26dBm.
● Modular structure, easy to expand the function of equipment and maintenance.
● All control circuits and devices use high-efficiency switching chips, and the overall power consumption is ≤10W.
● The power supply can realize dual power hot backup, snap-type fixed, one-touch pull.
● Output power +0.2~-4dBm adjustable.
● Standard network management interface, in line with SNMP network management protocol.
